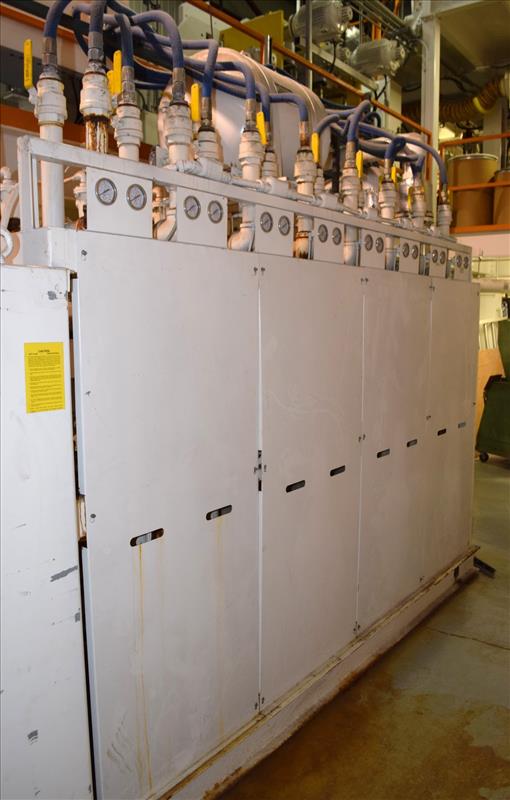

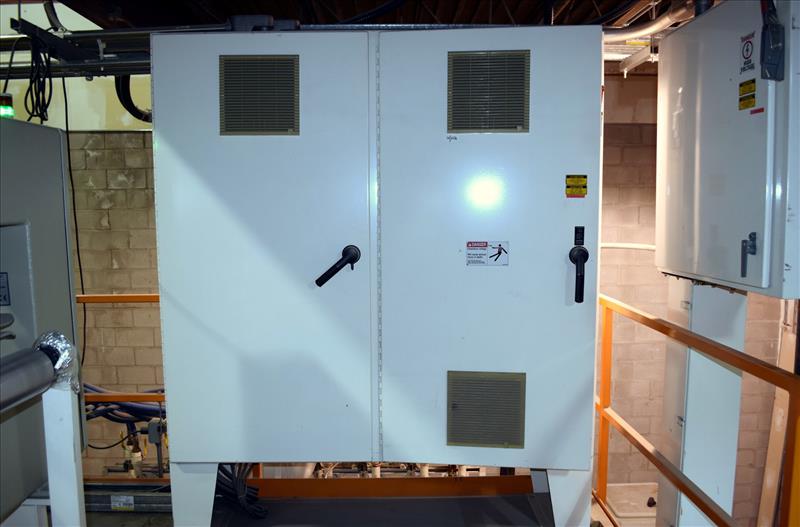

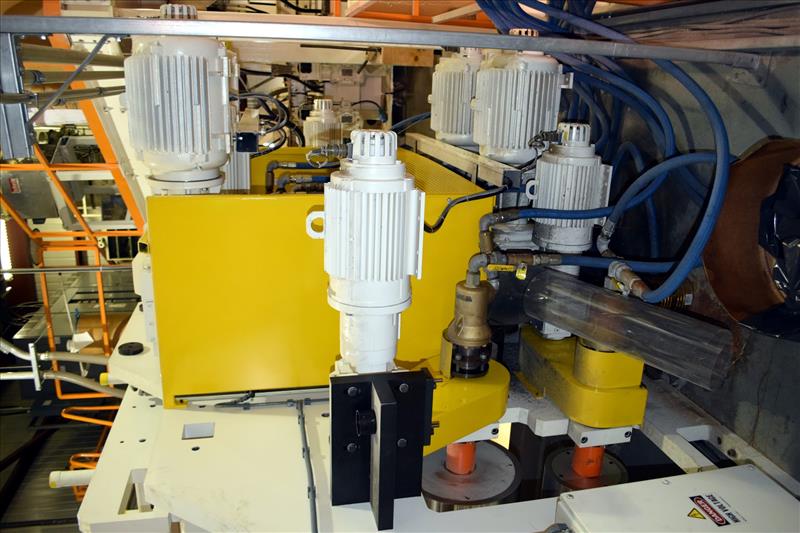

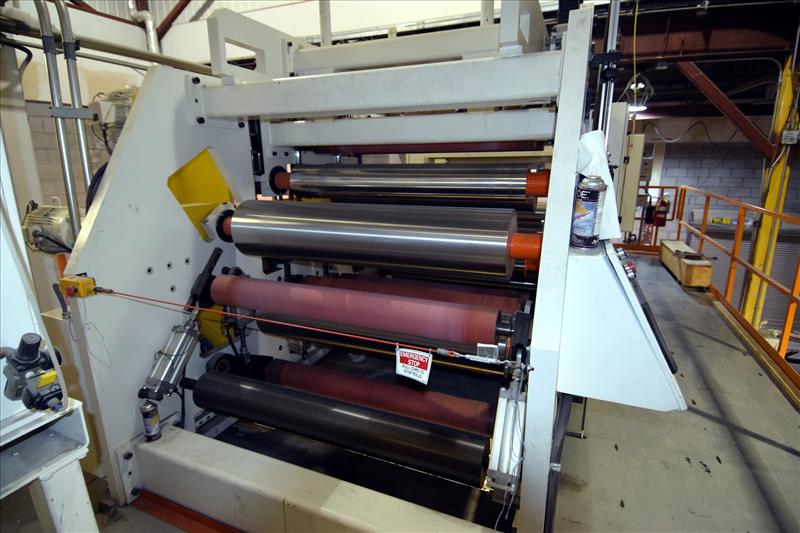

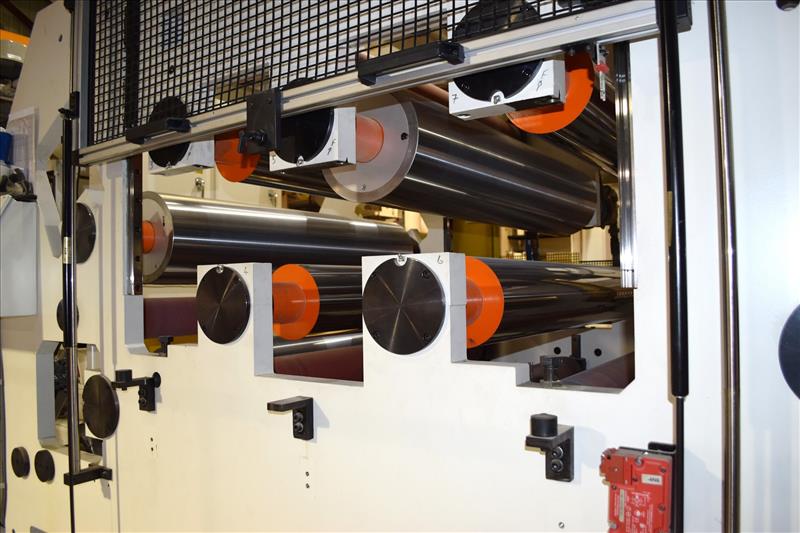

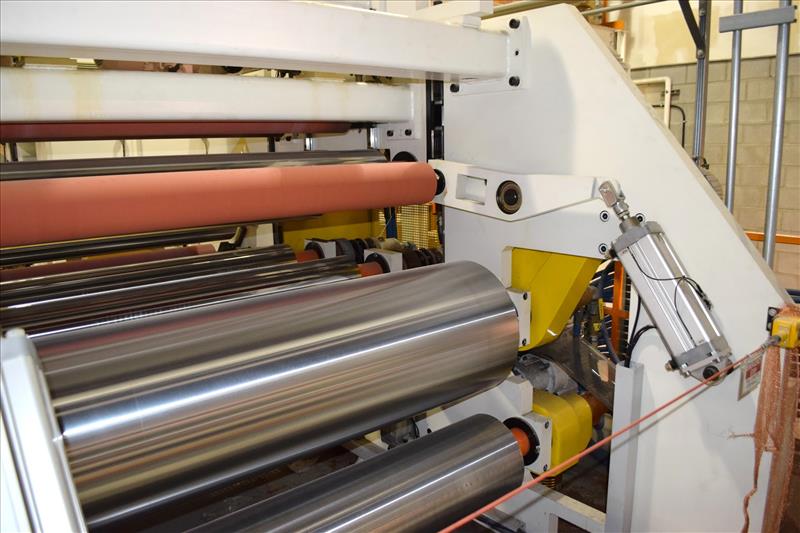

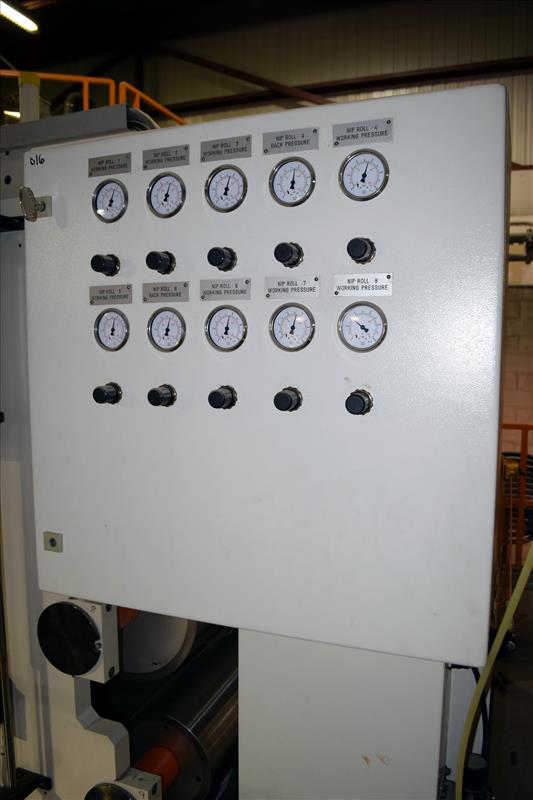

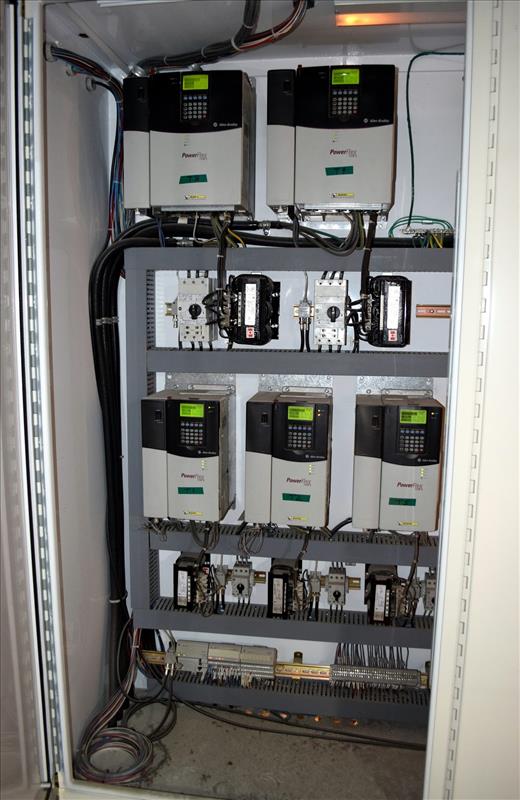

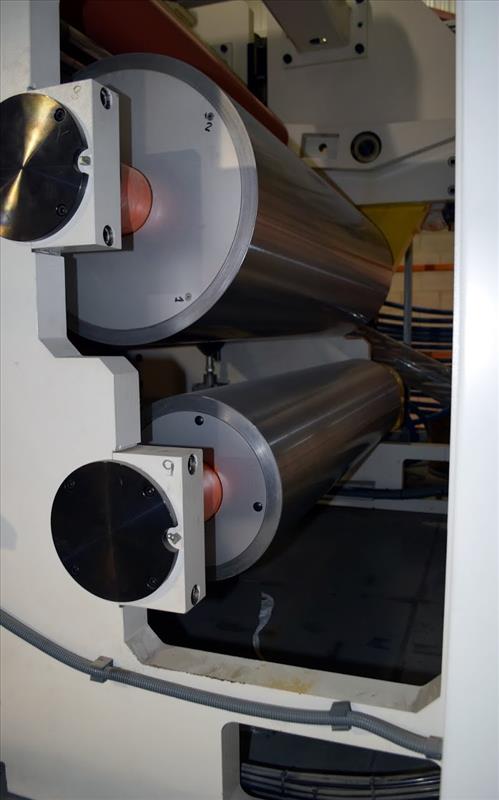

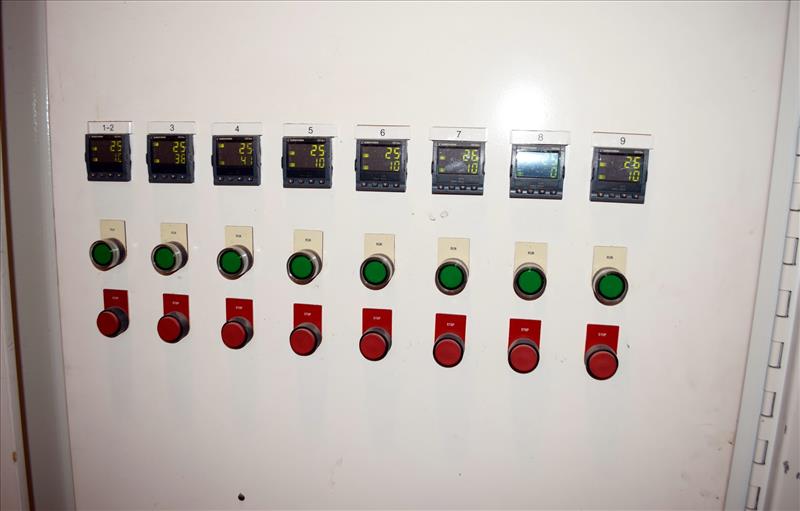

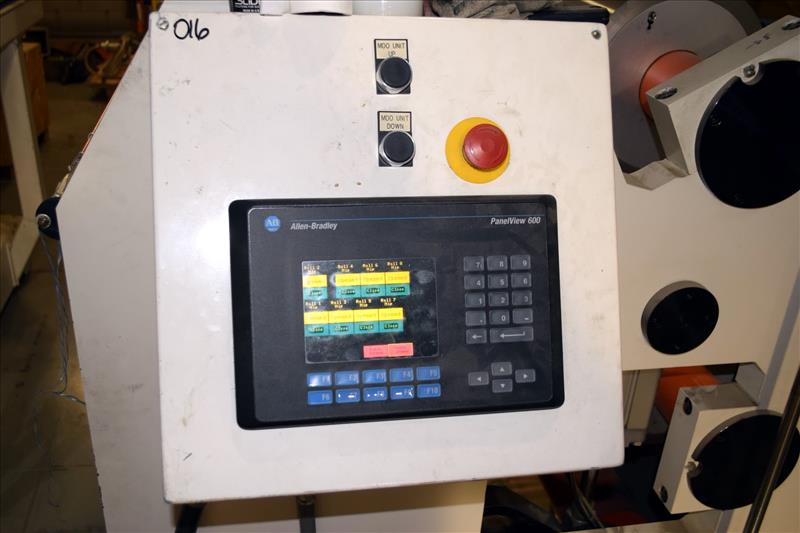

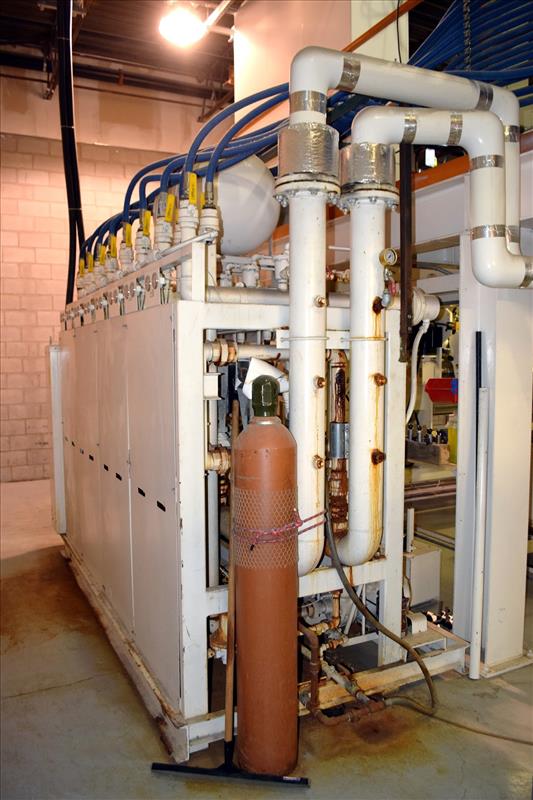

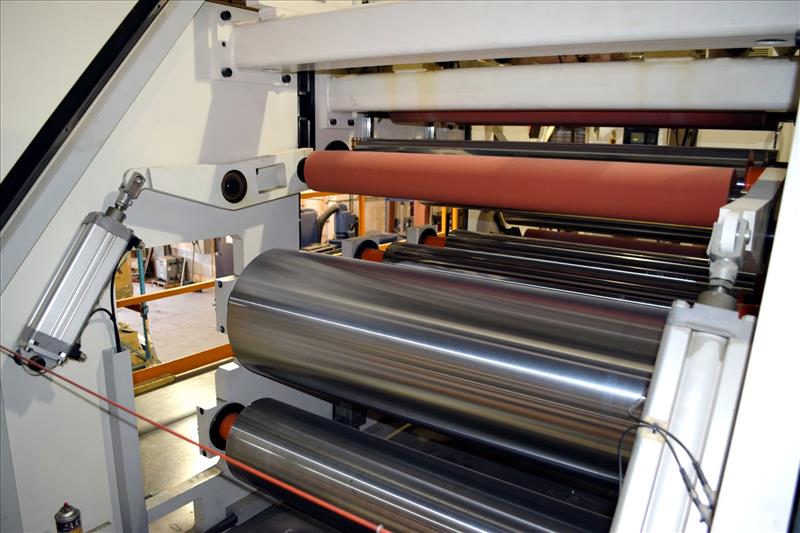

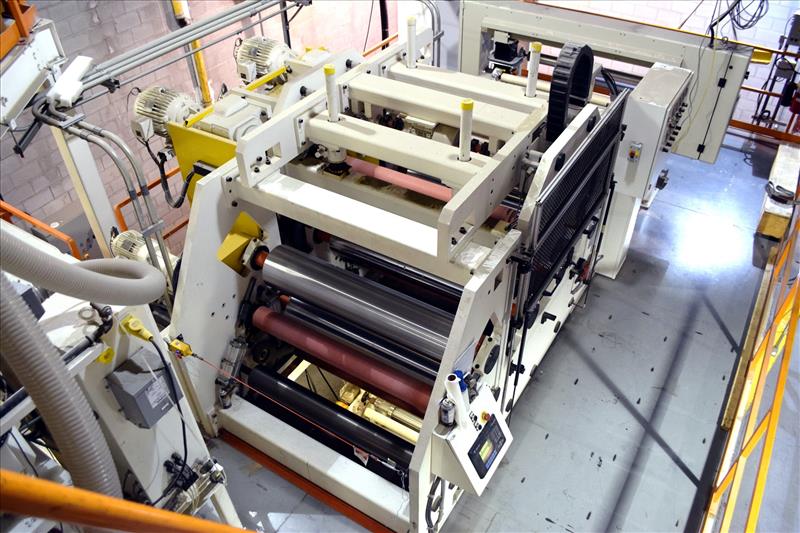

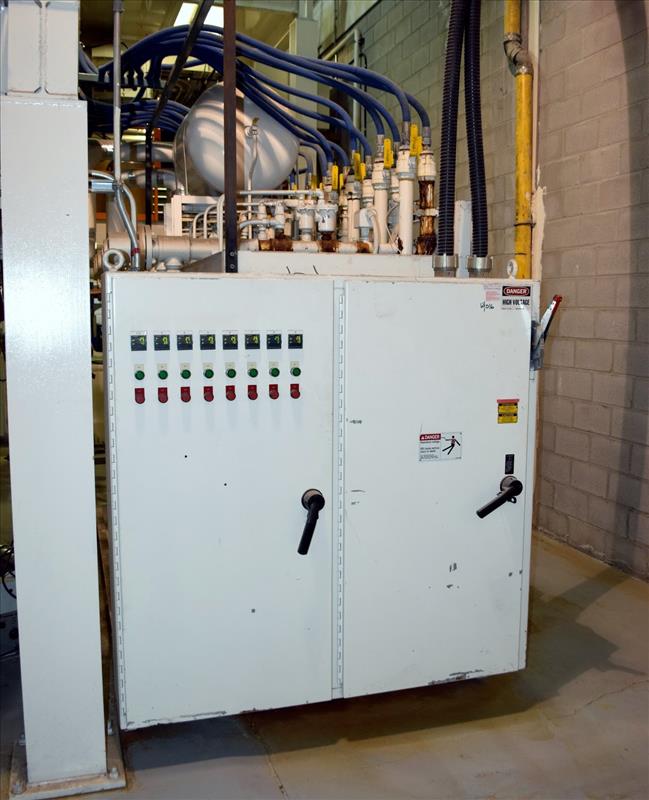

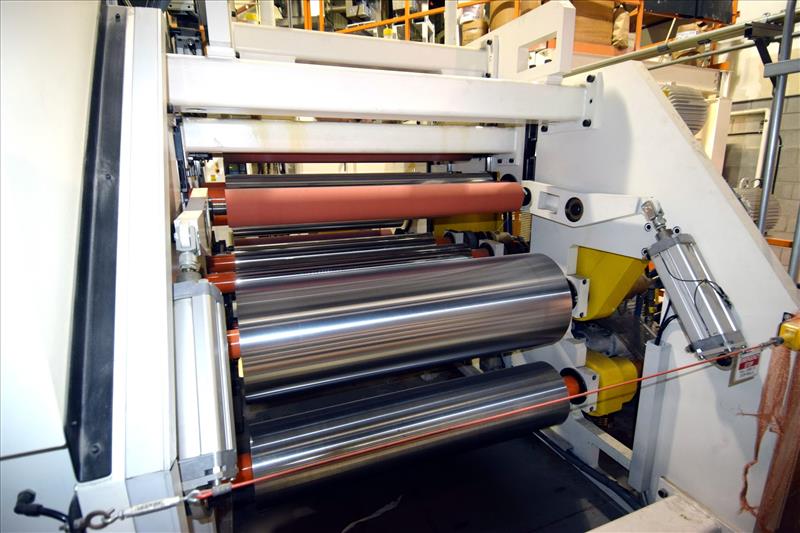

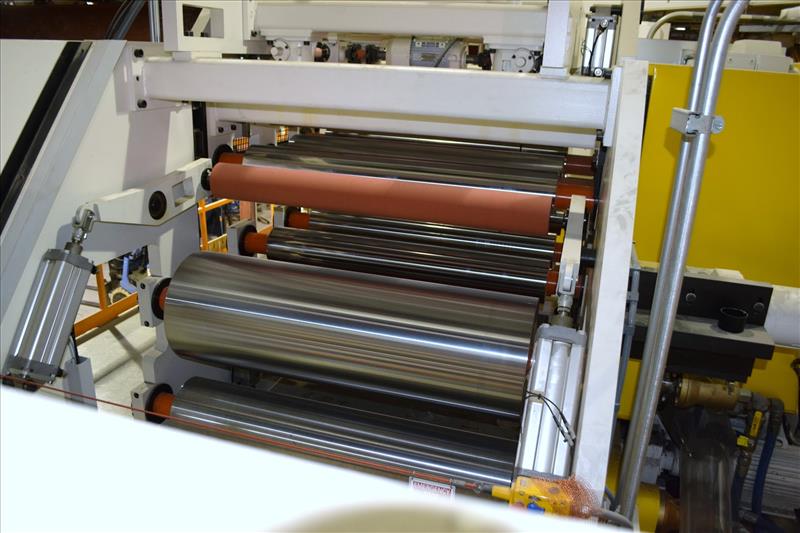

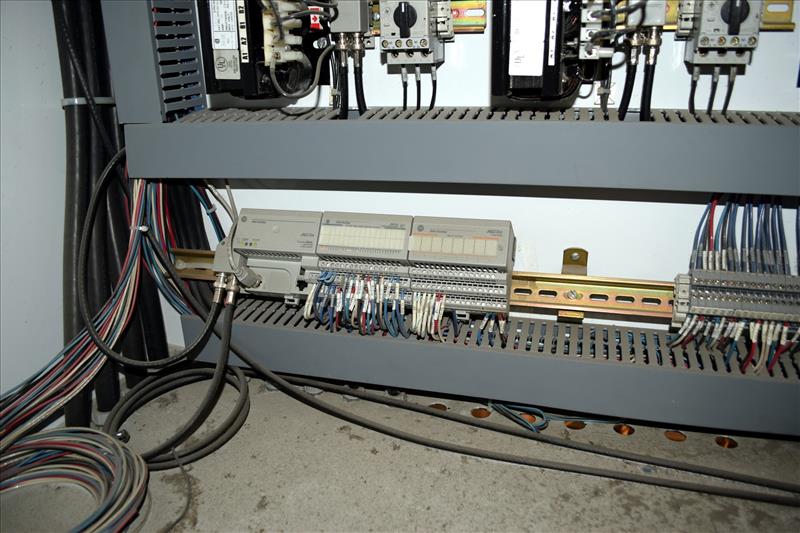

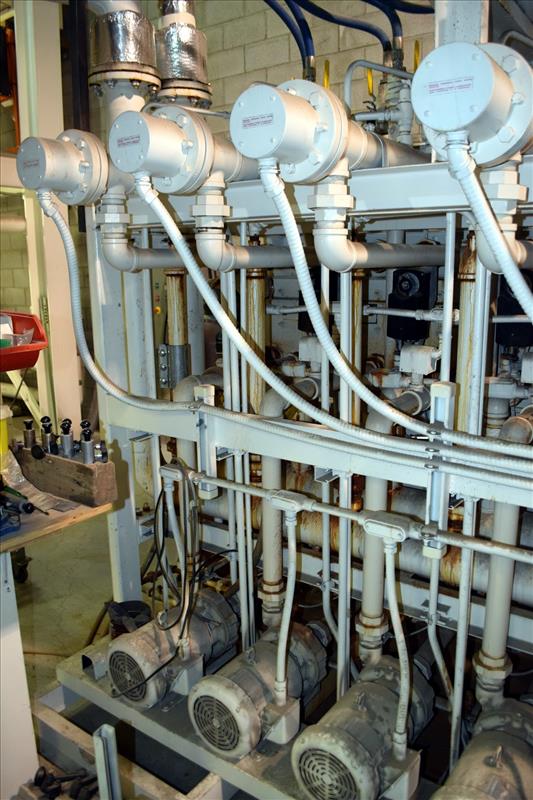

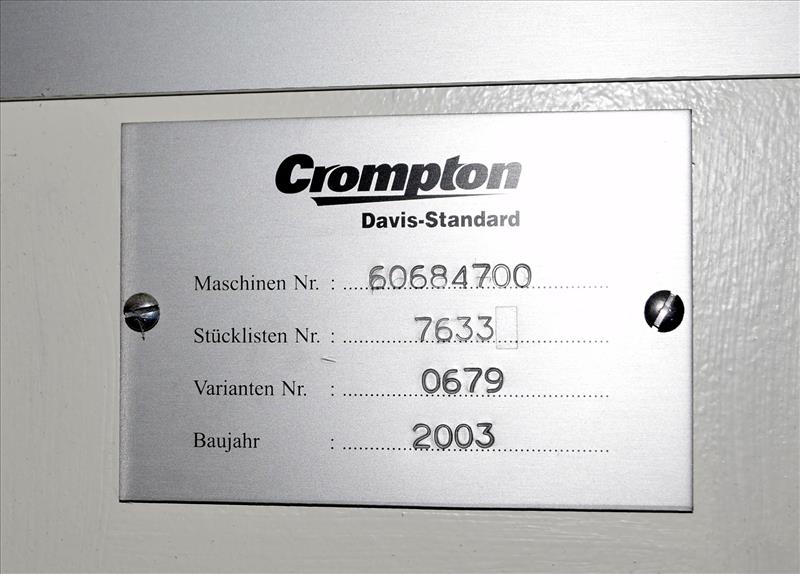

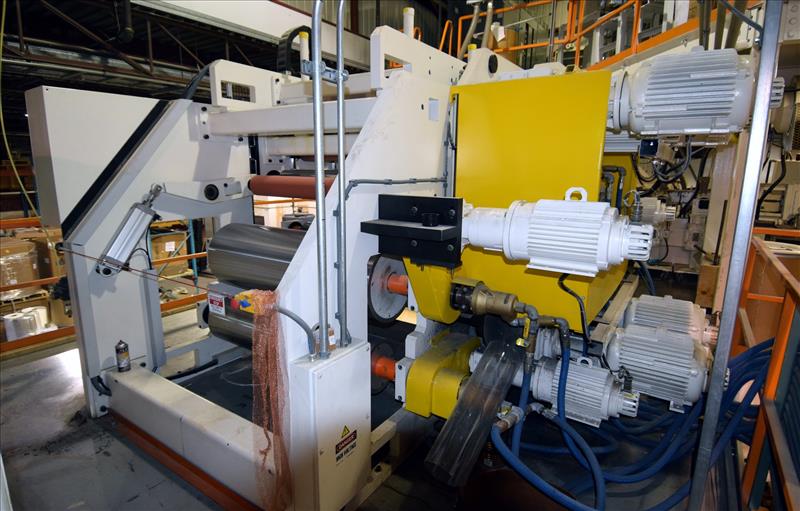

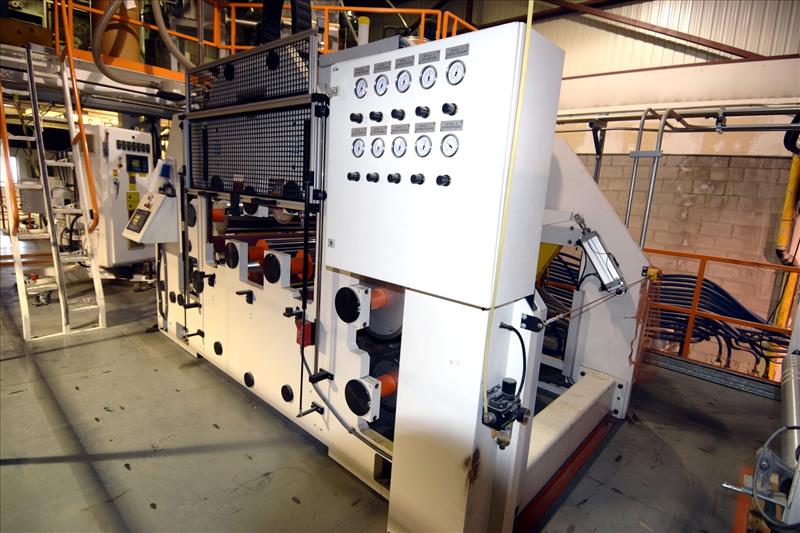

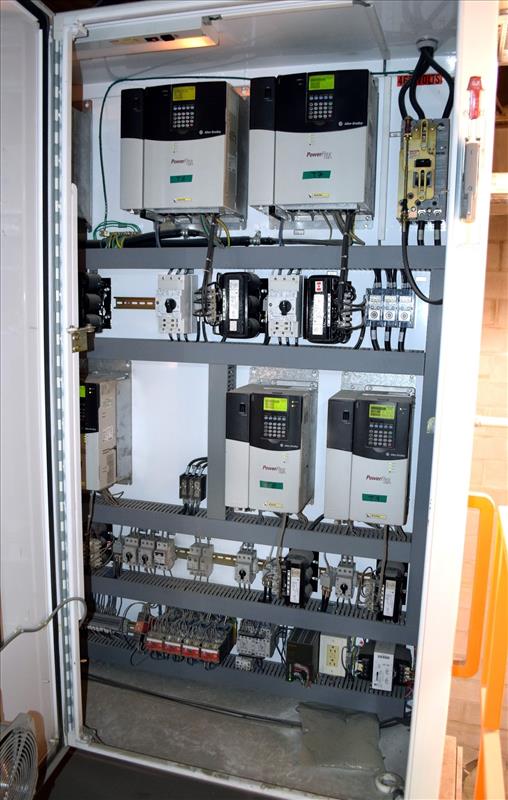

Davis Standard 2 Stage (9) Roll Machine Direction Orientation Machine, Serial# 60684700, Built 2003. Approximate 53in. wide. Allows a total stretch ratio of up to 16 to 1, with all rolls individually driven and heated up to 148 degrees C (300 F).?Can also be used for annealing without stretching. Consists of: (8) 6in. diameter pneumatically adjustable nip rolls, (1) 7in. diameter fixed tension roll, (3) 12in. diameter fixed cored roll, each driven by a 5hp gear motor, (1) 18in. diameter fixed cored roll driven by a 5hp gear motor, (2) 8in. diameter fixed cored roll, each driven by a 20hp gear motor, (2) 8in. diameter adjustable cored roll, each driven by a 20hp gear motor, (1) 12in. diameter adjustable cored roll driven by a 5hp gear motor. Includes a control panel with an Allen-Bradley PanelView 600, Allen-Bradley Power Flex 700 S drives, and a Budzar water skid model 8WT-3670-C/070-DSP, serial# 200308-7356.
